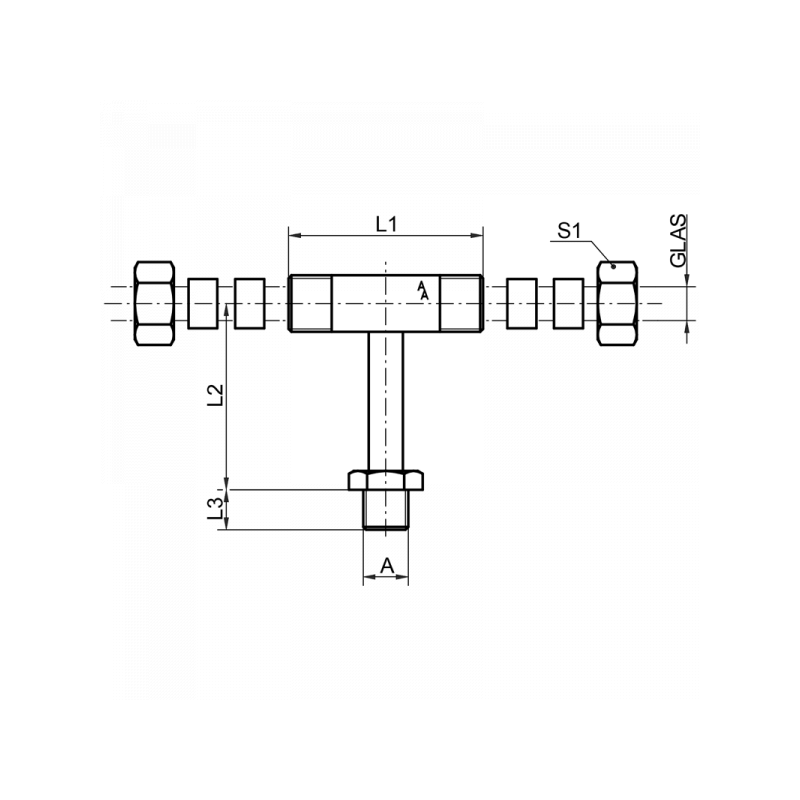

Fig. 121:

A L1 / mm L2 / mm L3 / mm S1 Glas Material Art.Nr. PDF
G1/2 -20°C / +200°C 66 47 16 27 13 1.4571 10121043
G3/4 -20°C / +200°C 75 80 16 32 16 1.4571 10121063
G1 -20°C / +200°C 71 80 20 41 20 1.4571 10121083
Flansch DN20 -20°C / +200°C 71 90 X X 20 1.4571 10121FDN203
Flansch DN25 -20°C / +200°C 95 90 X X 25 1.4571 10121FDN253
