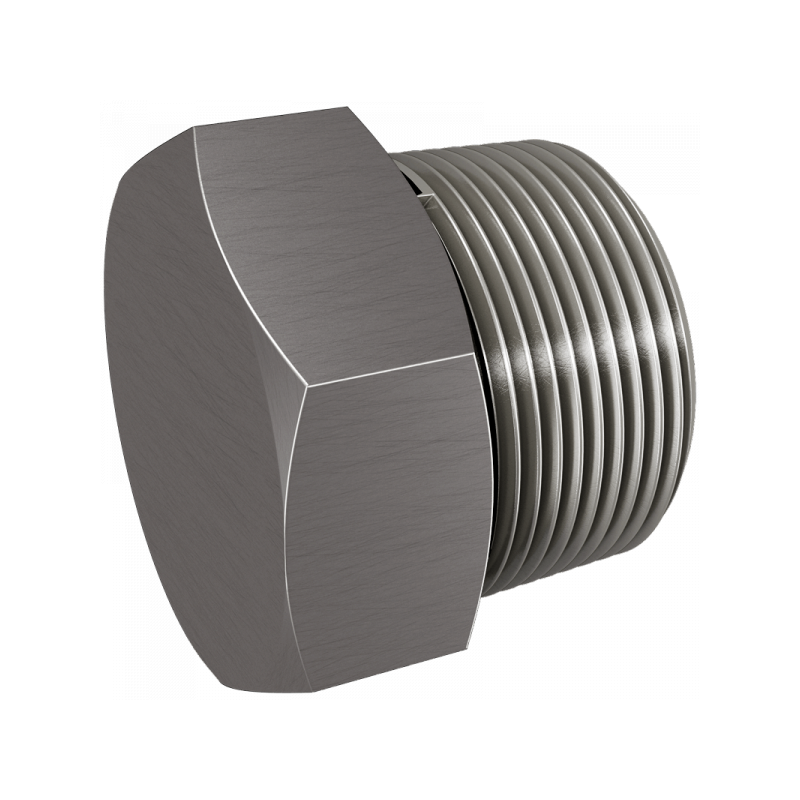

Fig. 5832:

A PN / Bar L1 / mm S1 Material Art.Nr. PDF
1/8NPT 630 17 12 1.4571 583201
1/4NPT 630 22 14 1.4571 583202
3/8NPT 630 22 19 1.4571 583203
1/2NPT 630 30 22 1.4571 583204
3/4NPT 630 30 27 1.4571 583206
1NPT 400 37 36 1.4571 583208
1 1/4NPT 400 38 46 1.4571 583210
1 1/2NPT 400 44 50 1.4571 583212
2NPT 315 46 65 1.4571 583216
