Valves for measuring and control technology

Drain cocks

Fig. 190:

A DN PN / Bar C° L1 / mm L2 / mm S1 D Material Art.Nr. PDF
G1/8 4,5 6 -5°C / +50°C 65 10 22 2,5 1.4571 10190013
G1/4 4,5 6 -5°C / +50°C 62 10 22 2,5 1.4571 10190023
G3/8 6 6 -5°C / +50°C 76 12 22 4 1.4571 10190033
G1/2 8 6 -5°C / +50°C 85 14 27 5 1.4571 10190043
G3/4 12 6 -5°C / +50°C 104 16 32 8,5 1.4571 10190063
G1 15 6 -5°C / +50°C 133 20 41 9 1.4571 10190083

Related articles

Fig. 117

Fig. 117

Fig. 180

Fig. 180

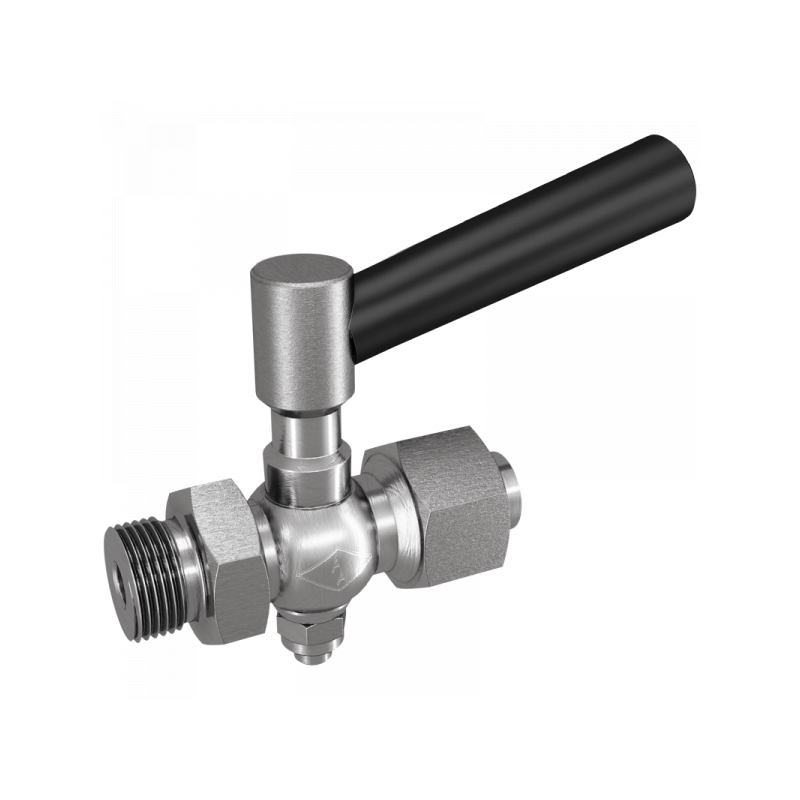

Fig. 182
