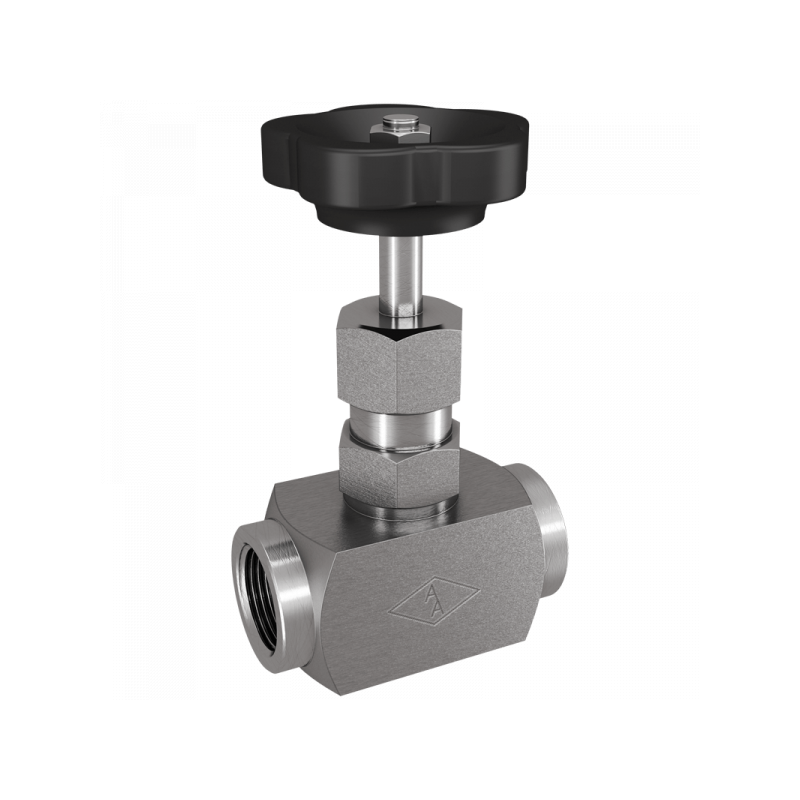

Fig. 110/MS:

A DN PN / Bar L1 / mm L2 / mm L3 / mm F / mm S1 Material Art.Nr. PDF
G1/8 4 100 -20°C / +100°C 50 85 10 50 22 Messing 10110011
G1/4 5 100 -20°C / +100°C 50 85 10 50 22 Messing 10110021
G3/8 5 100 -20°C / +100°C 50 85 10 50 22 Messing 10110031
G1/2 6,5 100 -20°C / +100°C 55 90 12 63 25 Messing 10110041
G3/4 8,5 100 -20°C / +100°C 67 110 14 63 32 Messing 10110061
G1 10 100 -20°C / +100°C 75 110 17 63 41 Messing 10110081
G1 1/4 13 100 -20°C / +100°C 110 130 20 90 55 Messing 10110101
G1 1/2 15 100 -20°C / +100°C 110 130 20 90 60 Messing 10110121
G2 15 100 -20°C / +100°C 112 140 21 90 70 Messing 10110161
