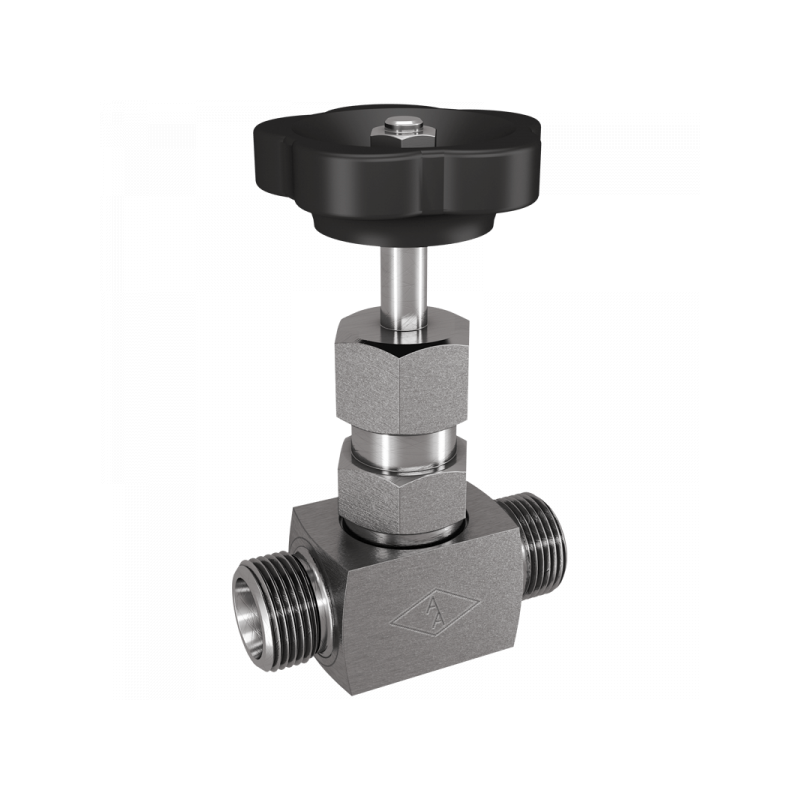

Fig. 110/F:

A DN PN / Bar L1 / mm L2 / mm F / mm S1 Material Art.Nr. PDF
G1/2 7 150lbs 60 90 63 30 1.4571 10110F043ANSI150
G1/2 7 40 60 90 63 30 1.4571 10110F043PN40
G3/4 9 40 75 100 63 35 1.4571 10110F063PN40
G1 12 40 100 110 90 45 1.4571 10110F083PN40
