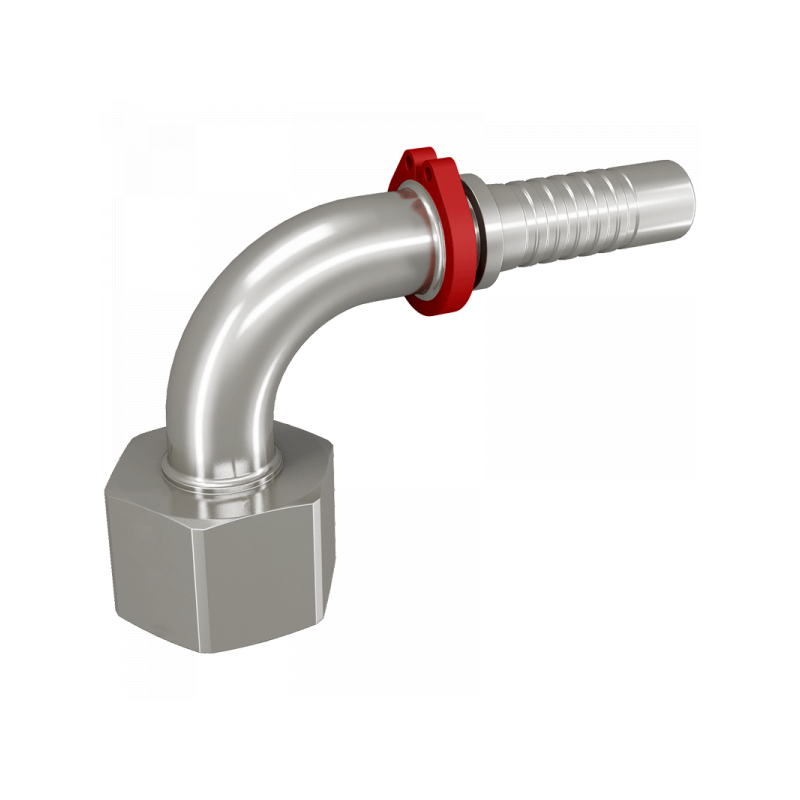

DKOS-90°:

A B / mm DN L1 / mm L2 / mm L3 / mm S1 C / mm Material Art.Nr. PDF
M18x1,5 6,7 6 61 31 34,0 22 3,9 1.4571 4202DN06
M14x1,5 6,7 6 57 27 30 17 3,9 1.4571 4202DN06M14
M16x1,5 6,7 6 60 30 30 19 3,9 1.4571 4202DN06M16
M20x1,5 8 8 59 29 37 24 5,4 1.4571 4202DN08
M22x1,5 9,6 10 71 37,7 41 27 6,5 1.4571 4202DN10
M20x1,5 9,6 10 73 39,7 37 24 6,5 1.4571 4202DN10M20
M24x1,5 12,8 12 80 44,7 46 30 9,5 1.4571 4202DN12
M30x2 12,8 12 75 39,7 47,0 36 9,5 1.4571 4202DN12M30
M30x2 16 16 85 46,7 56 36 12,6 1.4571 4202DN16
M36x2 19,1 20 100 54,2 61,0 46 14,8 1.4571 4202DN20
M30x2 19,1 20 100 54,2 61,0 36 14,8 1.4571 4202DN20M30
M42x2 25,9 25 130 75 71 50 20,0 1.4571 4202DN25
M52x2 32,5 32 150 90,2 85 60 26,0 1.4571 4202DN32
